BUCKET ELEVATOR: moving to the right way






ET / TT

Bucket Elevator for pasta

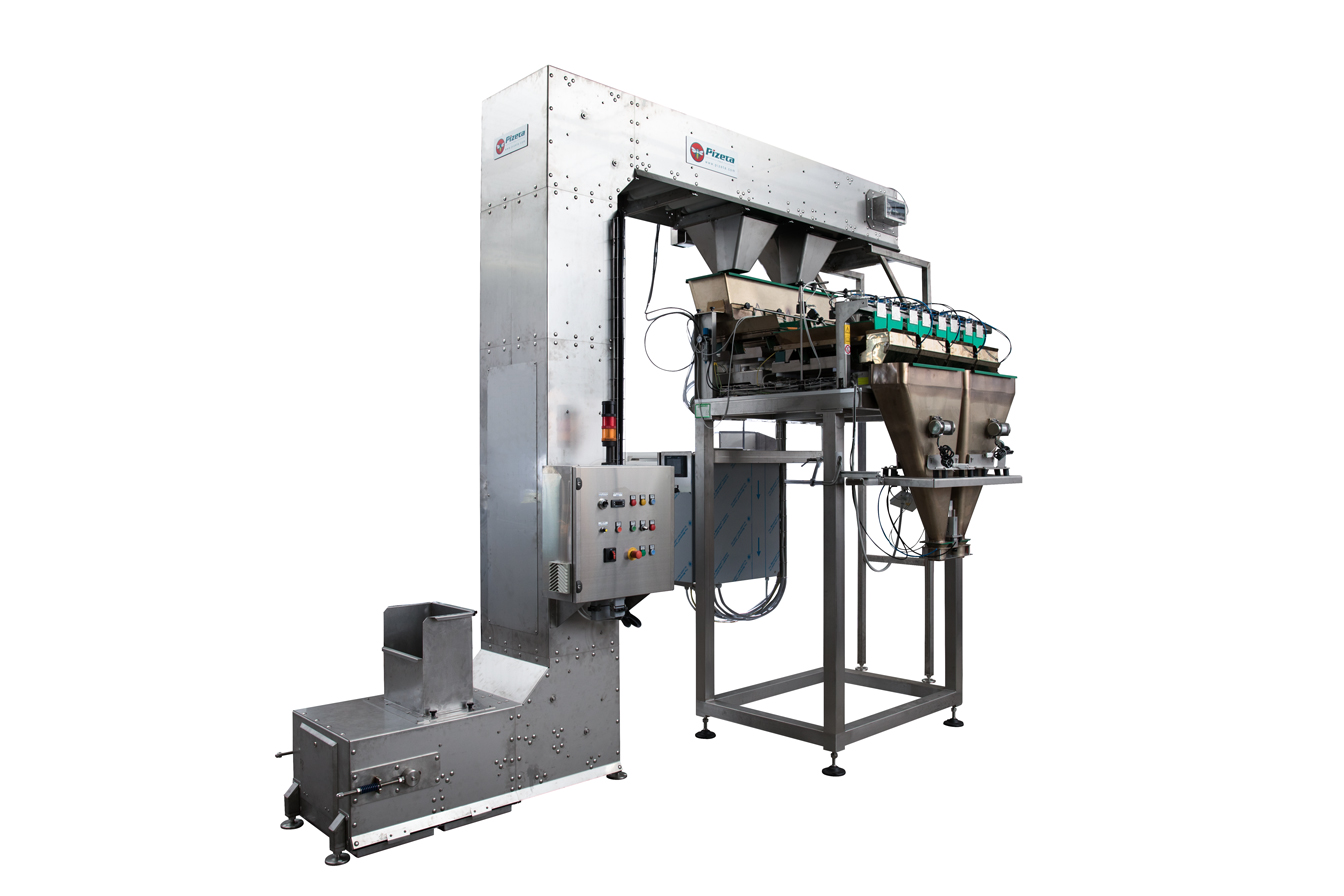

The elevators/conveyors by PIZETA are designed to collect the product from one or more points and convey it to the desired users.
On account of their modular components, PIZETA elevators can built in various configurations to meet customers’ needs and to comply with the required loading and unloading specifications. The gearmotor with torque limiter, installed on the elevator end, drives the chain conveyor and the buckets assembled to it.
The discharge terminals can be fixed or mobile and equipped with recirculating ball slides. PIZETA buckets stand out for the absence of stagnation points, highest hygiene level and ease of replacement.

---

DISCOVER MORE ABOUT
ET/TT >


MD

Distributor mixer

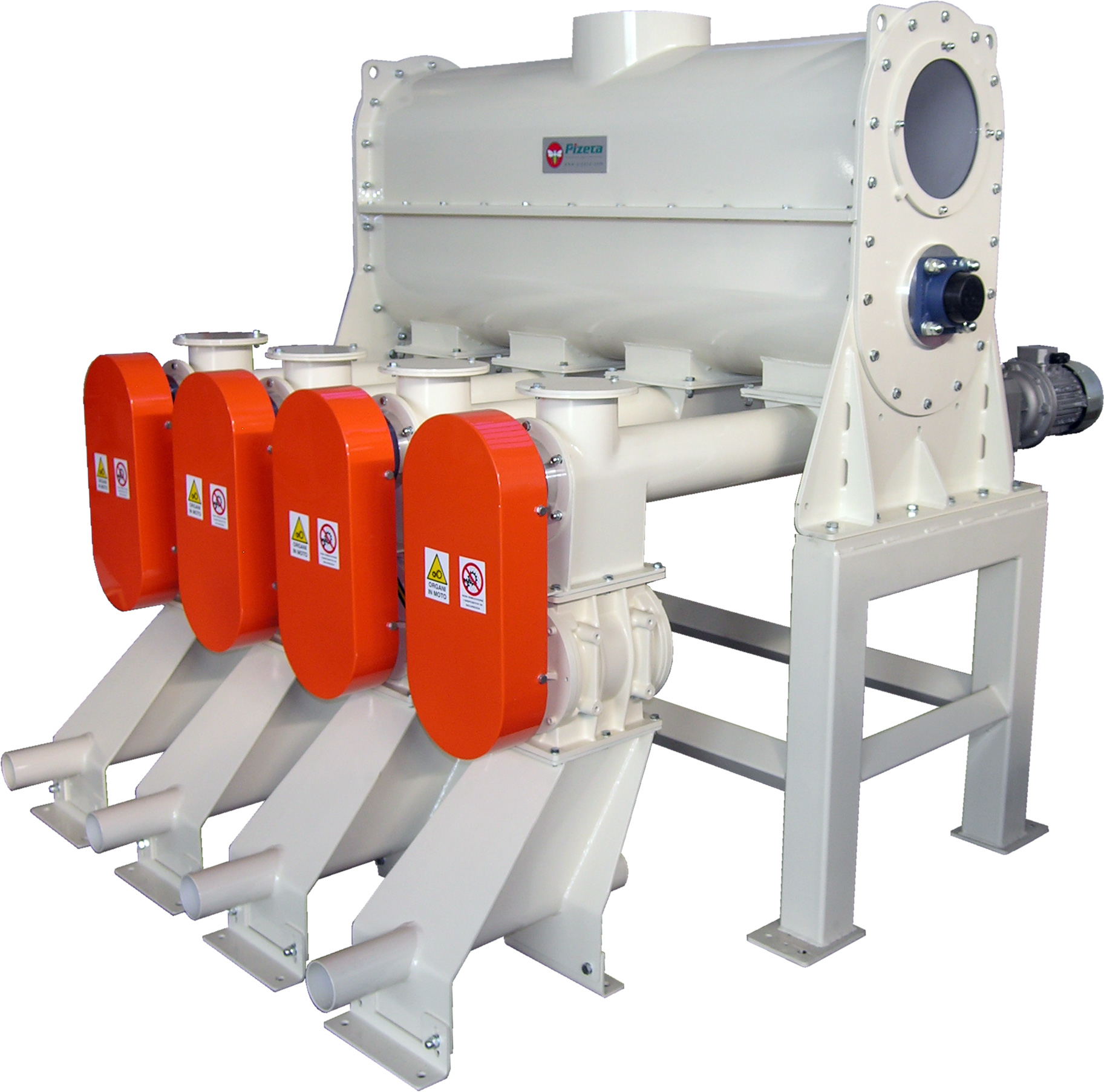

The PIZETA distributor mixer mixes and homogenizes the incoming product to guarantee a continuous supply to the various unloading mouths. It consists of a machine body and a spiral whisk. The latter, driven by a motor reducer, keeps the product moving and distributes it to the various mouths. The special shape of the distribution chamber prevents product deposits, to meet the highest standards of hygiene.

---

DISCOVER MORE ABOUT
MD >


CFA

Ciclone filter

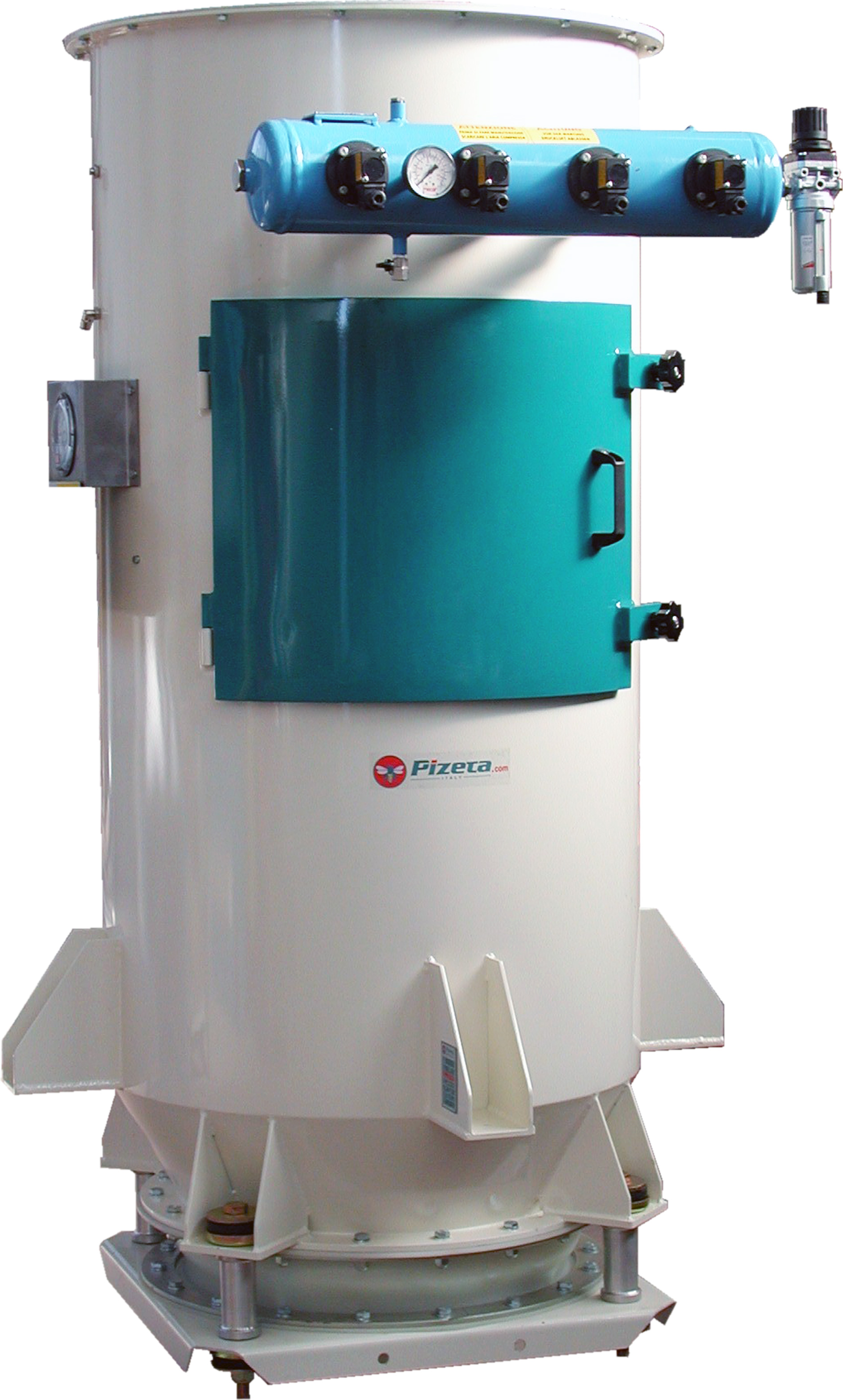

The PIZETA self-cleaning cyclone filter separates the product transported in the pneumatic lines and filters any dust in the air. The mix is piped into the sedimentation chamber where the product in the dusty air is separated. The product is deposited on the bottom while the dusty air flows back up the chamber to the bag filters; the residual dust collects on the bags, while the air flows through and out the top of the cyclone filter. The layer of dust on the bag filters is eliminated by a jet of compressed air that hits the bag filters in the opposite direction to the airflow at timed intervals. A specific manometer constantly detects the pressure loss between the two zones of the cyclone filter (checking the degree of efficiency of the filter bags). The machine consists of a frame and a cylindrical body holding the filter bags, while the bottom may be conical or fitted with a vibrating extractor.

---

DISCOVER MORE ABOUT
CFA >


SSP

Finished products storage silos

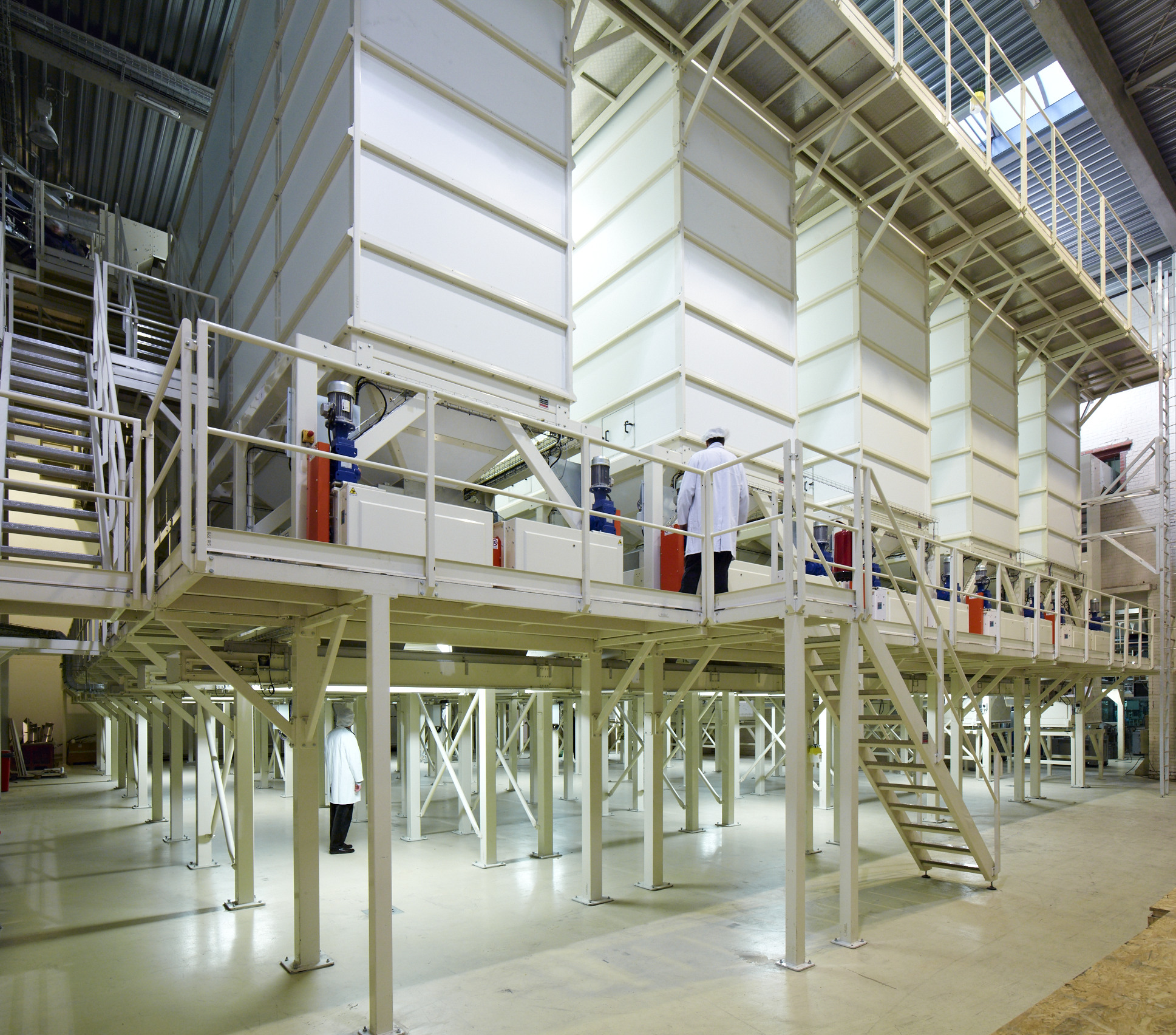

The PIZETA storage silo is an autonomous and self-supporting cell which is usually installed in series, with a strong painted carbon-steel frame within which plastic-laminated plywood or stainless steel panels can be fixed. The silos have a variable volumetric capacity depending on the models, and are configured to meet the client’s requirements. Walkways and ladders meeting relevant safety standards provide access to the top for inspections.

---

DISCOVER MORE ABOUT
SSP >


VC

Vibrating sieve

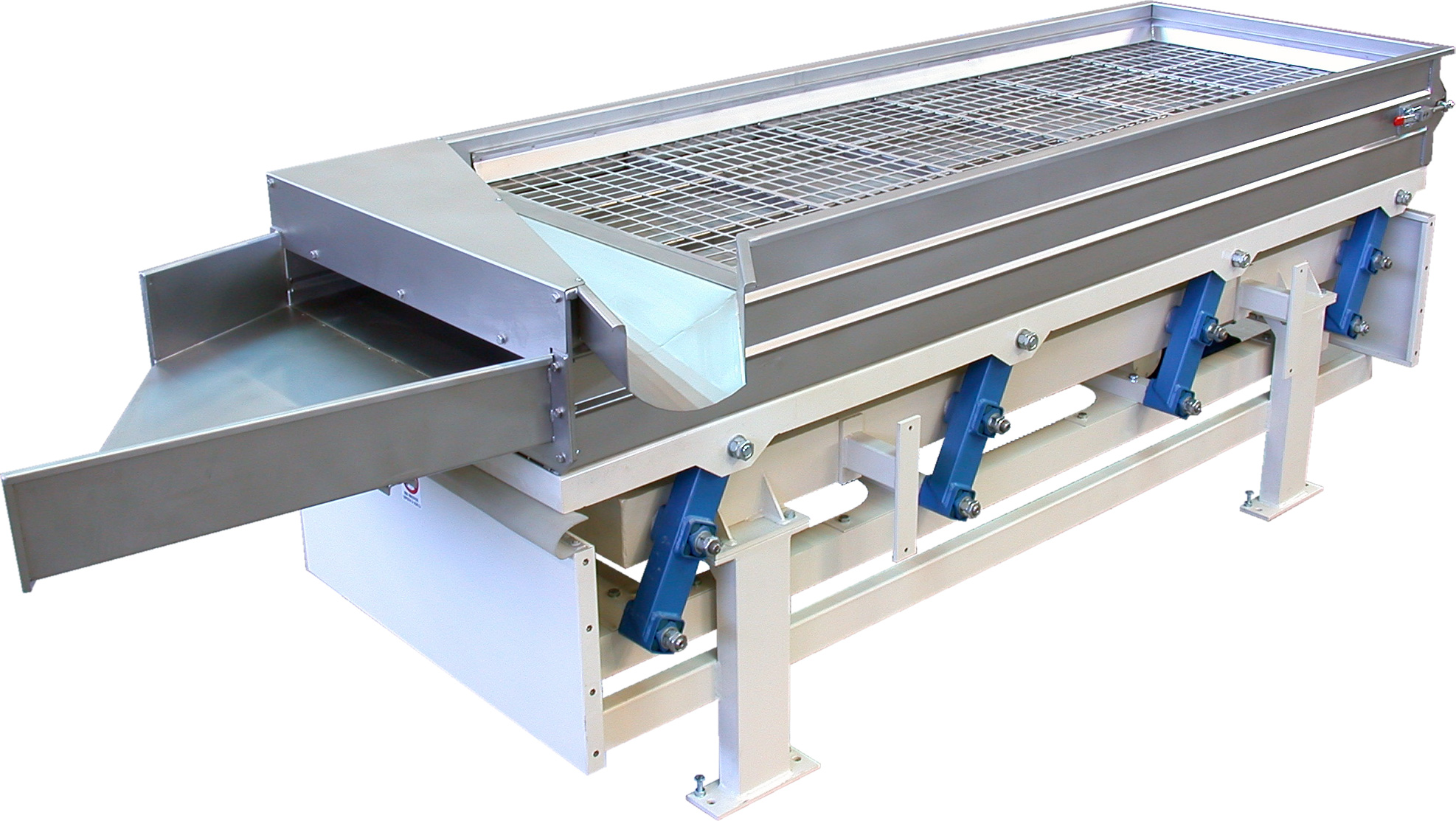

The PIZETA vibrating grader is a high-performance oscillating sieve used to separate powder and lumps from good product. It consists mainly of a strong frame and an oscillating tray with sieves. The system is driven by an eccentric cam which makes the tray oscillate on elastic suspension units. The size of the sieves depends on the required size of the finished product, and the sieves can easily be replaced to suit the client’s requirements.

---

DISCOVER MORE ABOUT
VC >
